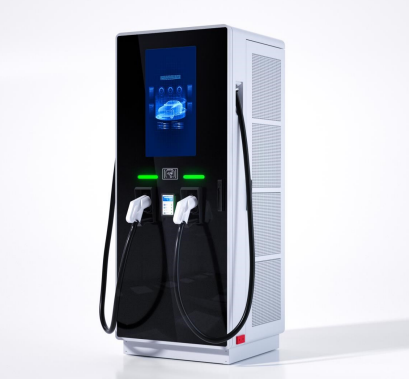

The YESGREEN 360 kW (500A) Intelligent 2 Gun Charger is an excellent choice for high powered charging electric buses and other vehicles. The modular architecture allows dynamic charging where maximum power can be directed to either outlet. This enables simultaneous two gun charging for single vehicles, reducing charging time. Large 32” high brightness display and operator selectable payment terminal make this product an excellent choice for public rapid charger operators and logistics depots alike. As a sister product to our popular 360/6 charging system, this new 360/2 two gun version is designed for continuous 24/7 charging operation at full rated power.

TechnicalÊSpecification

Power rating                                360 kW, 500A DC

EV connectors                             CCS2, two guns

Charging cable                            5 or 7 meters as standard

EV charging CCS                         350A / 270 kW per gun (max)

Dual charging mode                   Up to 500A / 360 kW (two guns)

Output Voltage                           200~1000 VDC

Power unit, size (w,d,h)               900 x 800 x 2135 mm

Power unit, weight                      650 kg

Case safety ratings                      IP54

Operating temperature              -30°C to +50°C

Main display                               Samsung 32 inch FullHD

Payment terminal                        Nayax VPOS Touch (optional)

Product variants

YESGREEN 360 kW 2 Gun Charger, 5 meter cables

YESGREEN 360 kW 2 Gun Charger, 7 meter cables

Nayax VPOS Touch payment terminal
